TD-SC200
- Training on Arrival
- One-year warranty
- Factory Direct
Self weight:1.89(t)
Motor:7.5kw,380v
Dimensions:2000*700*1500 (mm)
Self weight:1.89(t)
Motor:7.5kw,380v
Dimensions:2000*700*1500 (mm)
| Modle | TD-SC200 |
| Lifting arm | 1.5 meters 5 sections 5.9 meters long |
| Motor | 7.5 kW 380V |
| Turntable | Integrated internal gear disc |

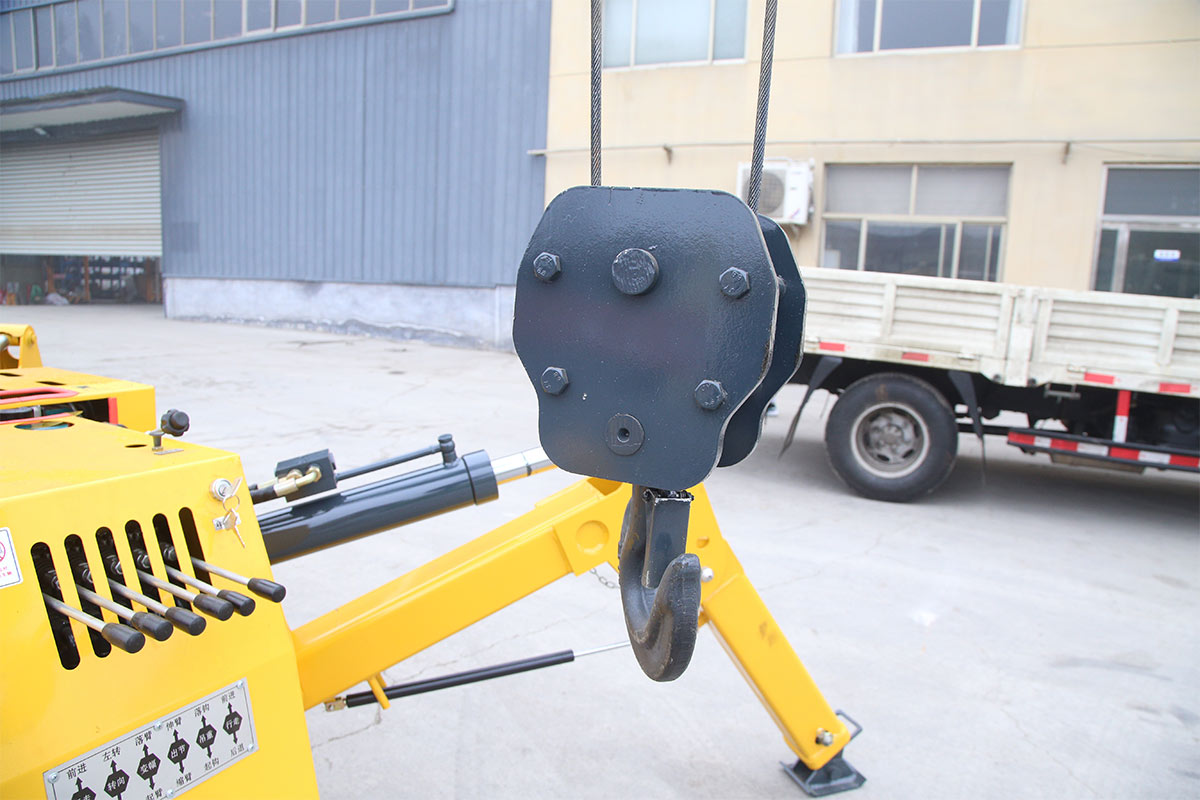

| Winch | 2 ton winch |
| Steel wire rope | 8mm, 40m long |
| Support legs | 4 prone legs with dual output |
| Vehicle dimensions | Dimensions：2000* 700 * 1500 (mm) |
| Self weight | 1.89 ton |
| Engine | Single-cylinder diesel engine |

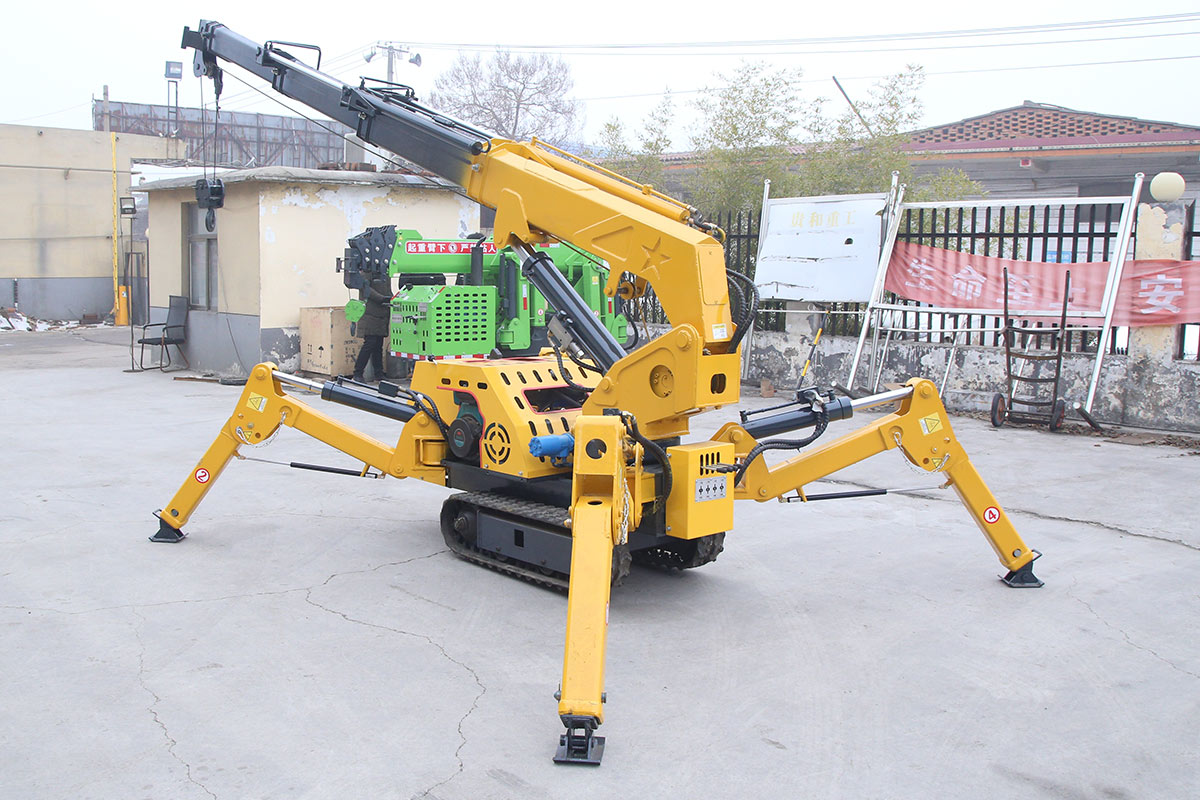

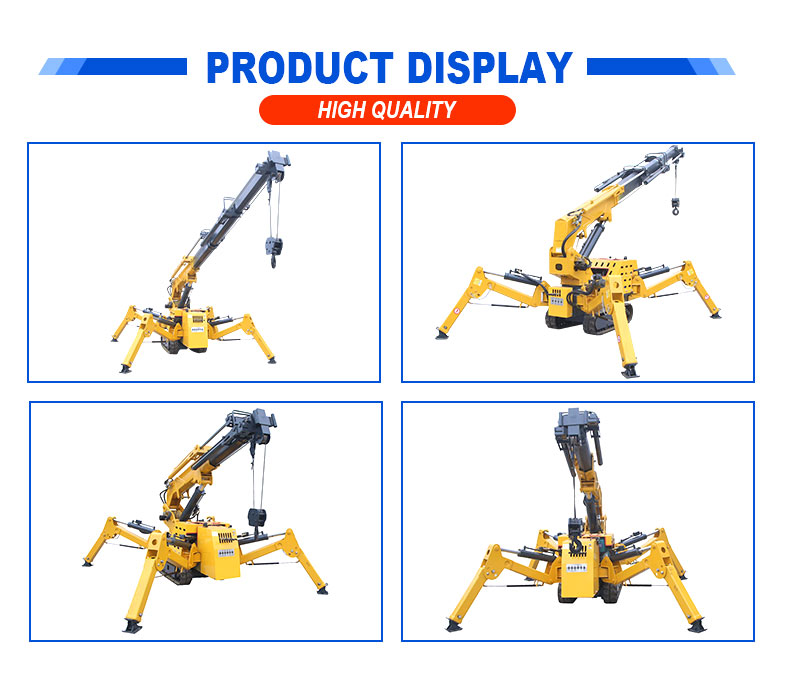

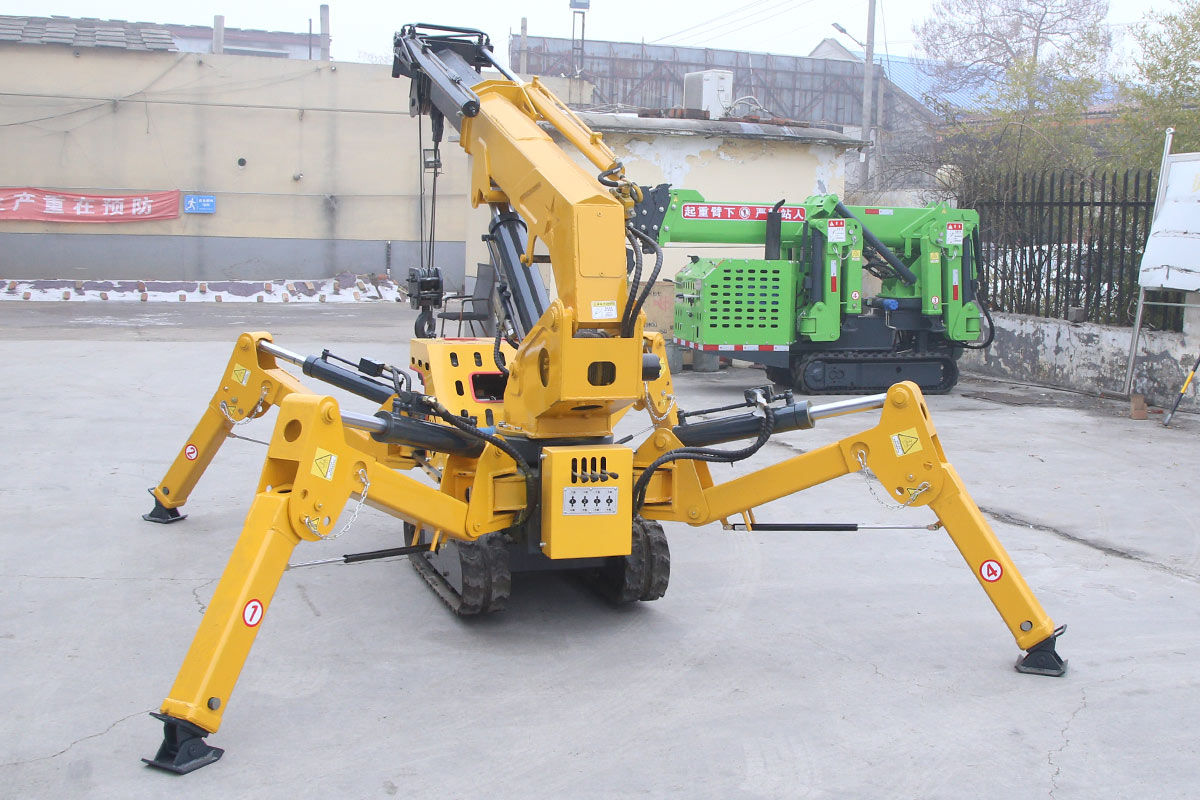

TD-SC200 Spider Crane: Compact Strength for Heavy Lifting:
1.The TD-SC200 spider crane is a powerhouse in a compact frame, delivering 2-ton lifting capacity with precision and ease.
Its 5-section lifting arm extends to 5.9 meters, crafted from high-strength manganese steel for durability. The enhanced luffing cylinder and integrated internal gear disc ensure smooth, accurate movement.

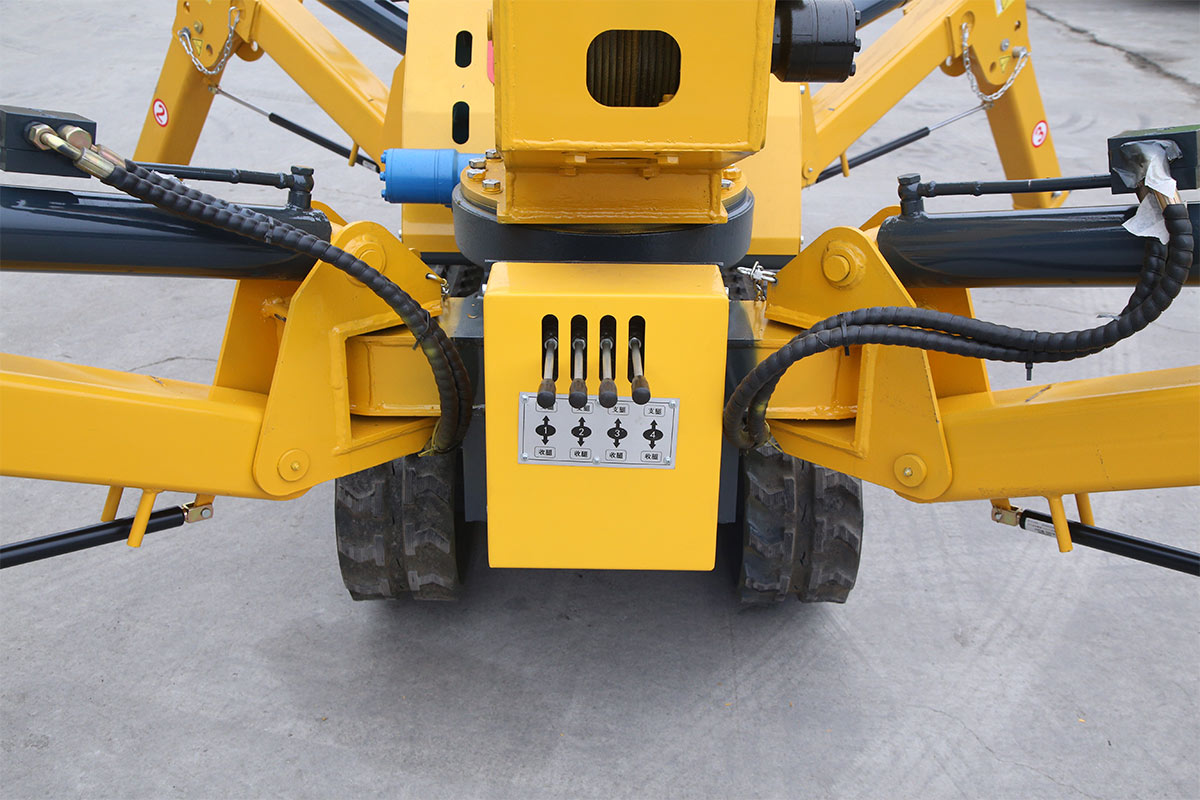

2.Designed for versatility, it features 4 prone legs with dual hydraulic and manual outputs, offering superior stability on uneven surfaces.
The hydraulic motor drive enables navigation on slopes up to 23° (36%), while the manual and optional remote control system enhances operational flexibility.

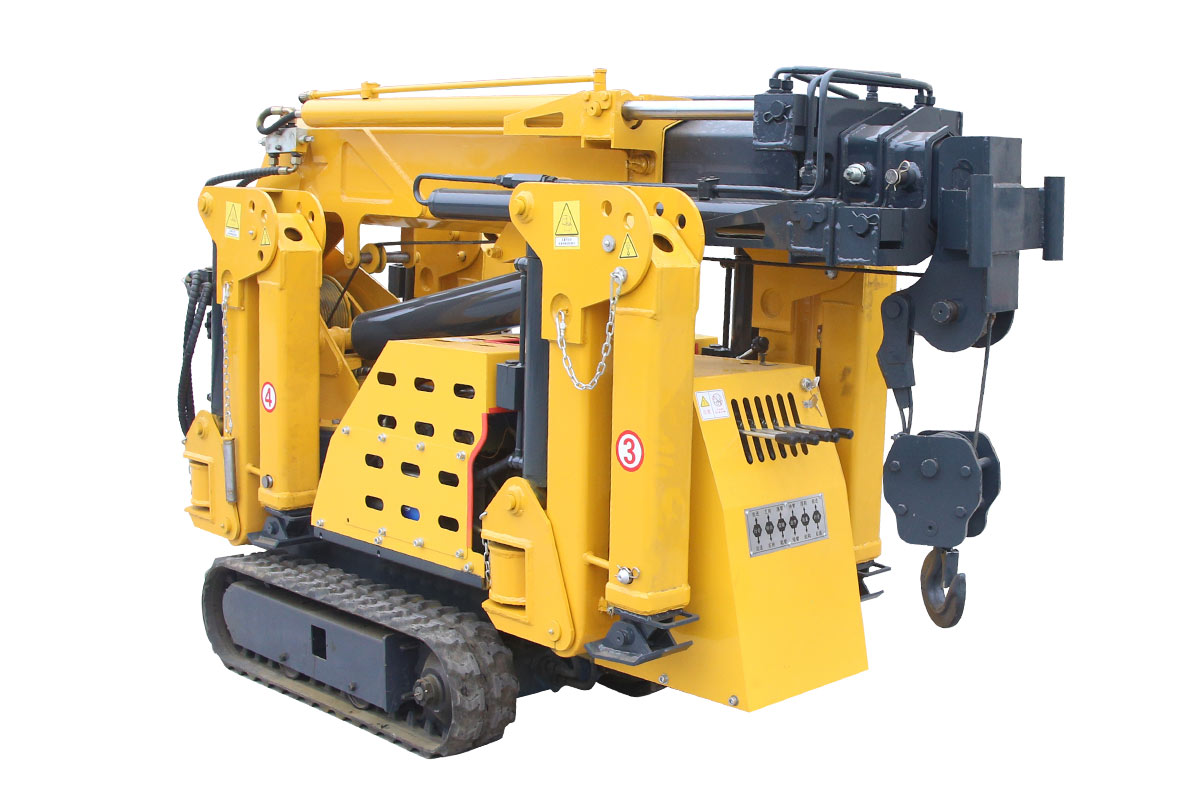

3. With its compact dimensions (2m × 0.7m × 1.5m) and 1.89-ton weight, the TD-SC200 excels in tight spaces without compromising power.
Powered by a single-cylinder diesel engine and a 7.5 kW 380V motor, it provides reliable performance across construction, maintenance, and installation projects.
Inquire now to get the best price.
