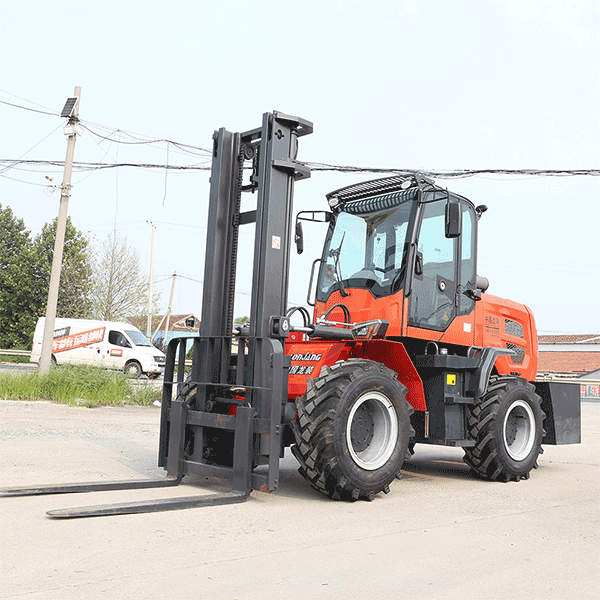

TD-500A All-Terrain Forklift – Power, Stability, and Off-Road Performance
The TD-500A all-terrain forklift is engineered for demanding material handling in rugged and off-road environments. With a robust 5000 kilogram lifting capacity, four-wheel drive, and a reinforced heavy-duty axle, this machine is built to handle extreme conditions with ease. Whether working on construction sites, mining operations, or agricultural fields, the TD-500A delivers unmatched power, stability, and maneuverability.
Uncompromising Power and Performance
At the heart of the TD-500A is the Weichai 4102 turbocharged engine, delivering high torque output and fuel efficiency. This engine ensures reliable performance in harsh terrains, allowing for smooth operation even under heavy loads. Paired with a 280 dual high-low speed torque converter transmission, operators can expect seamless power transitions and precise control.
Heavy-Duty Off-Road Capability
Designed for extreme job site conditions, the TD-500A features four-wheel drive for superior traction on uneven surfaces. The 350 millimeter ground clearance at the wheelbase center allows for easy navigation over obstacles. With a 38-degree gradeability, it can climb steep inclines without compromising performance.
Superior Lifting and Stability
The TD-500A is built for high-load, high-reach applications. The standard lifting height of four to seven meters adapts to various stacking needs. The 1520 millimeter standard fork length accommodates a wide range of materials. The six-degree forward and twelve-degree backward fork tilt provide precise load positioning.
Rugged Construction for Maximum Durability
Equipped with a heavy-duty one-piece cast steel axle with wheel reduction, the TD-500A is designed to withstand continuous heavy-duty operations. The 16/70-24 off-road tires provide excellent grip and shock absorption, enhancing stability on rough terrain.
Enhanced Maneuverability and Control
With a tight 3.2 meter turning radius, the TD-500A ensures efficient movement in confined spaces. The mast front ground clearance of 300 to 380 millimeters allows for smooth operation over obstacles. The 1400 millimeter wide load backrest improves load support and safety.
TD-500A Technical Specifications
| Feature | Specification |
|---|---|
| Engine | Weichai 4102 Turbocharged |
| Drivetrain | Four-wheel drive |
| Transmission | 280 Dual High-Low Speed Torque Converter |
| Maximum Load Capacity | 5000 kilograms |
| Lifting Height | Four to seven meters |
| Fork Dimensions | 1520 millimeters length, 15 centimeters width, 5 centimeters thickness |
| Ground Clearance | 350 millimeters at wheelbase center |
| Mast Front Ground Clearance | 300 to 380 millimeters |
| Turning Radius | 3.2 meters |
| Gradeability | 38 degrees |
| Axle | Heavy-Duty One-Piece Cast Steel with Wheel Reduction |
| Tires | 16/70-24, 110 centimeters height, 40 centimeters width |
| Overall Dimensions | 4200 by 2000 by 2800 millimeters |
| Curb Weight | 4580 kilograms |
| Gross Vehicle Weight | 6200 kilograms |
| Mast Width | 18 centimeters |
| Load Backrest Width | 1400 millimeters |
| Fork Tilt | Six degrees forward, twelve degrees backward |
Built for Heavy-Duty Applications
Industries and Applications
The TD-500A is an ideal choice for construction sites, transporting and stacking heavy materials on uneven terrain. In mining operations, it ensures reliable performance in extreme environments. In agricultural fields, it efficiently handles bulky loads across large farmlands. For logistics and warehousing, its high-reach lifting improves storage efficiency.
Why Invest in the TD-500A
This forklift offers unmatched power and performance with a turbocharged engine and superior load-handling capacity. It is built for tough terrains with reinforced components, ensuring durability. With smooth transmission, excellent maneuverability, and enhanced lifting precision, it is a reliable solution for material handling in challenging environments.
Contact us today to learn more about the TD-500A and how it can enhance your operations.
