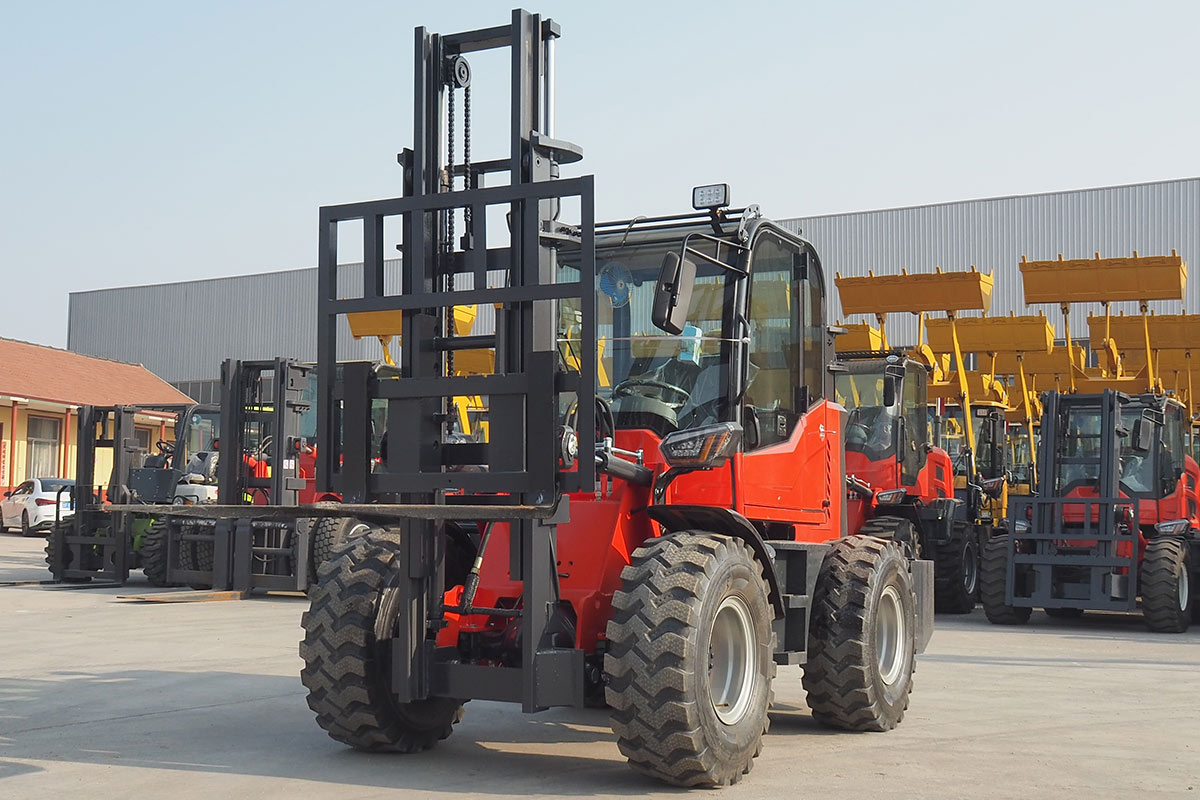

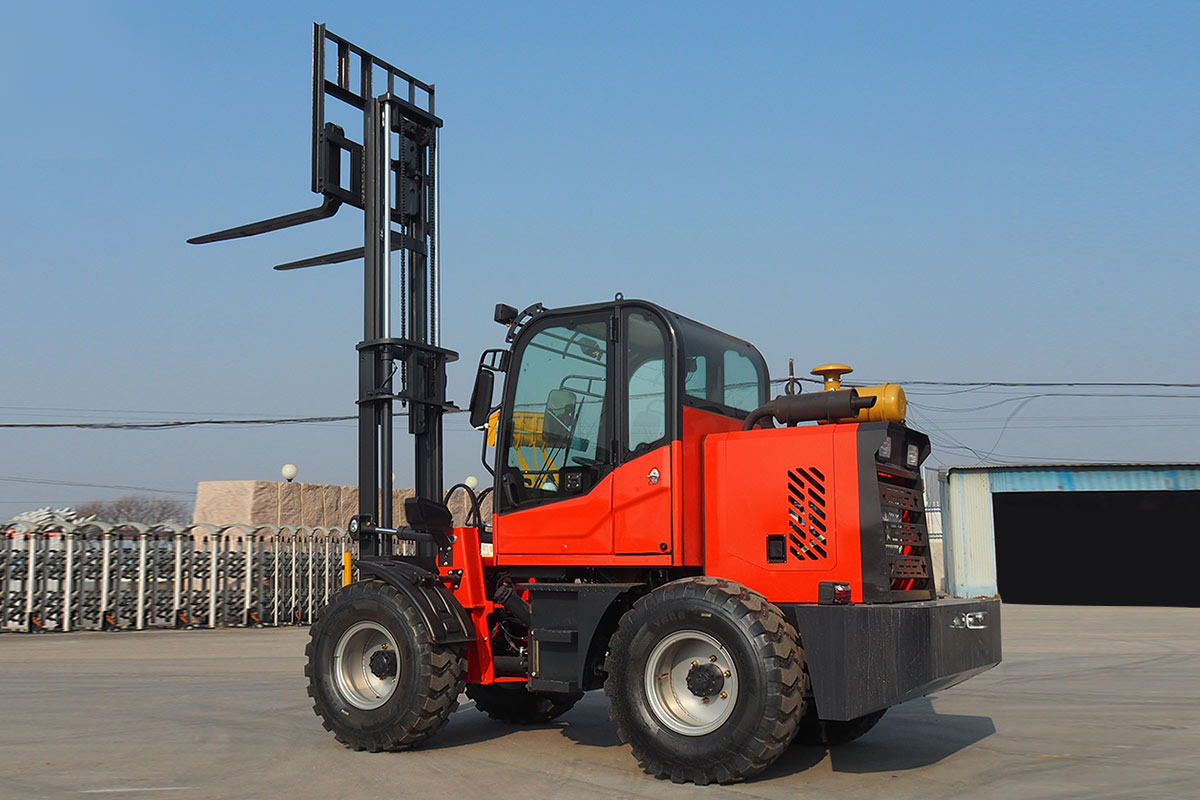

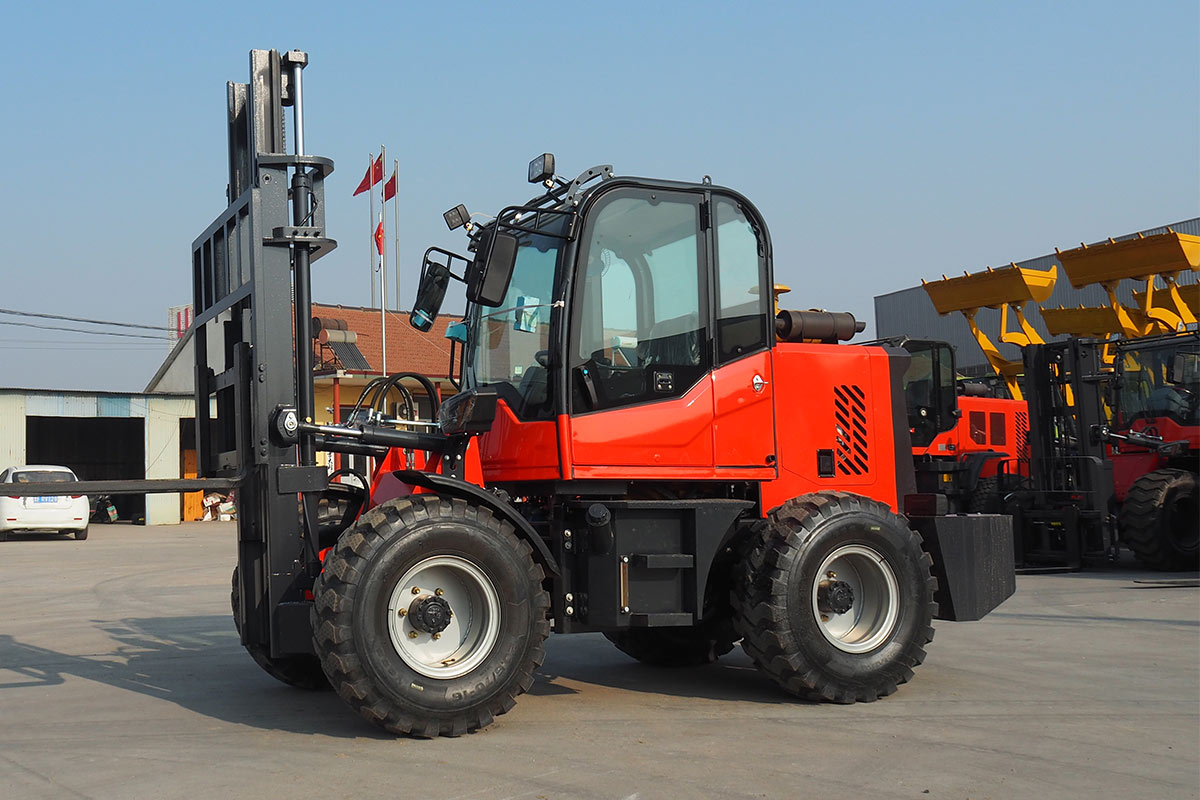

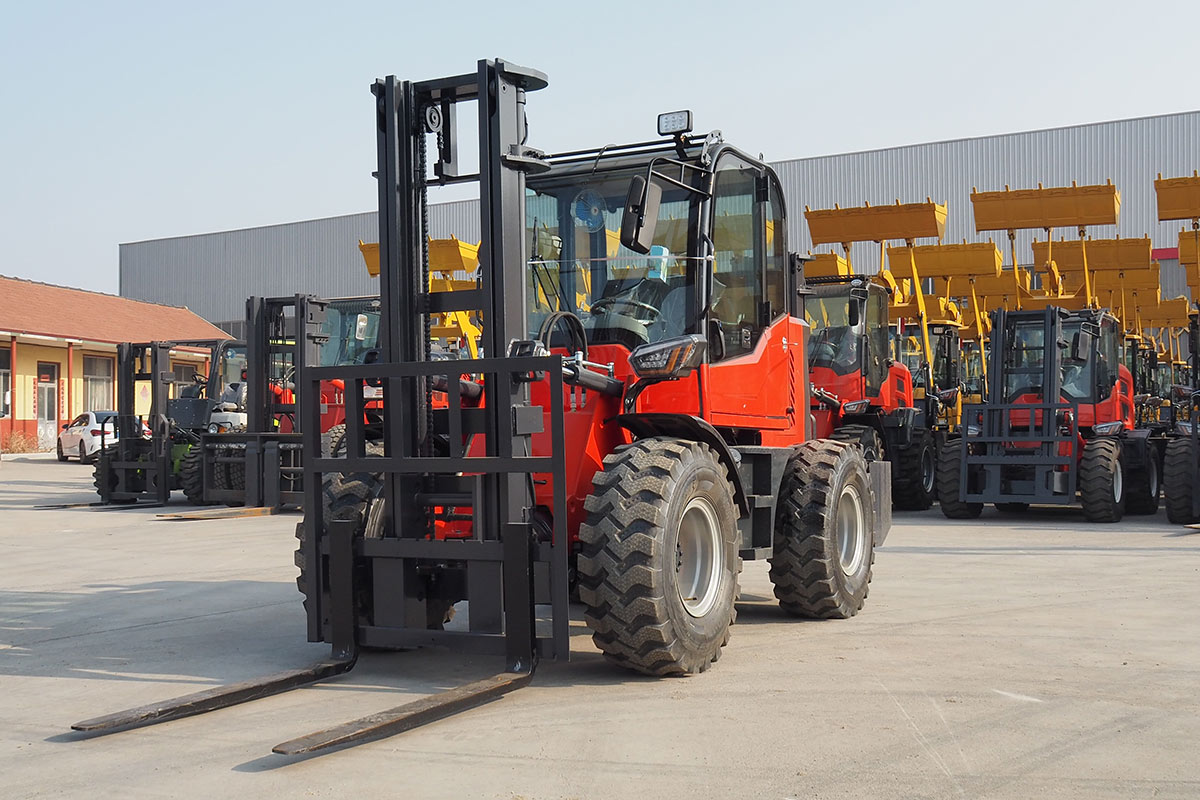

TD-150A
- Training on Arrival
- One-year warranty
- Factory Direct
Curb weight:1450kg
Maximum load:1500kg
Standard lifting height:3000mm
Curb weight:1450kg
Maximum load:1500kg
Standard lifting height:3000mm
| Model | TD-150A |
| Tire | 20.5/70-16 |
| Maximum load | 1500KG |
| Ground clearance at wheelbase Center | 200MM |
| Axle | 131 |
| Transmission | Fully hydraulic automatic torque converter |
| Turning radius | 2100MM |
| Mast width | 1200MM |
| Standard lifting height | 3000MM |
| Mast width | 38% |
| Standard fork length | 1220MM |
| Curb weight | 2120KG |
| Drivetrain | Four-wheel drive(4WD) |
| Gross vehicle weight(GVW) | 2720KG |
| Front mast ground clearance | 170-250MM |
| Fork tilt | 6/12 |
| External dimensions | 3400*1500*2200 |
Product Overview
The TD-150A off-road forklift is designed for tough outdoor conditions, combining durability, maneuverability, and efficient performance. With four-wheel drive, high ground clearance, and a fully hydraulic automatic transmission, it handles rough terrain with ease, making it ideal for construction, agriculture, and mining.
Reliable Performance Anywhere
With a 1500kg lifting capacity and a compact 2100mm turning radius, the TD-150A ensures smooth operation in tight spaces. Its 3000mm lifting height and 1220mm forks provide stability for various loads, while 6° forward and 12° backward tilt improve handling.
Why Choose TD-150A
Four-wheel drive for superior traction
Fully hydraulic transmission for smooth control
Compact design with excellent maneuverability
Stable and efficient lifting for outdoor work
Take Your Operations Further
Designed for challenging worksites, the TD-150A delivers power and stability where others fall short. Contact us to learn more.
