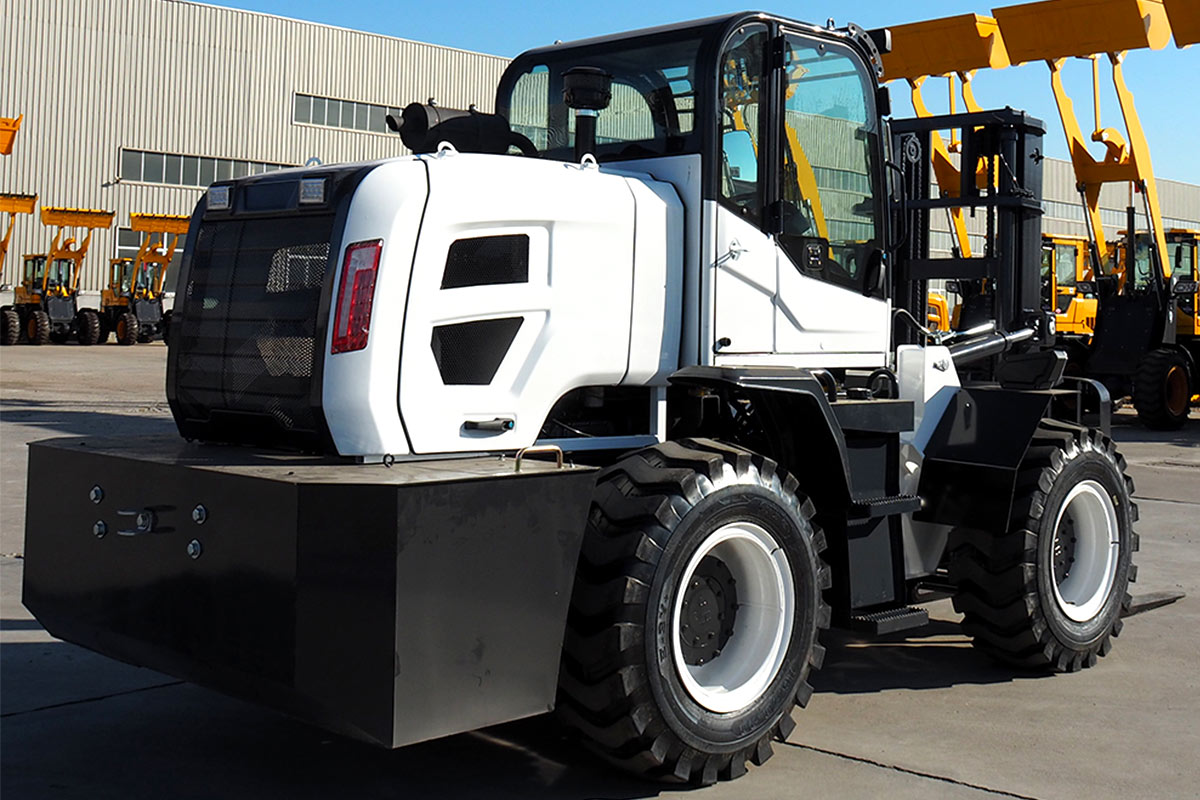

TD-500A
- Training on Arrival
- One-year warranty
- Factory Direct
Curb weight:4580kg
Maximum load:5000kg
Standard lifting height:3000mm
Curb weight:4580kg
Maximum load:5000kg
Standard lifting height:3000mm
| Model | TD-500A |
| Tire | 16/70-20 |
| Maximum load | 5000KG |
| Ground clearance at wheelbas | 350MM |
| Axle | Cast steel small wheel edge |
| Transmission | 265 integrated torque converter |
| Turning radius | 3250MM |
| Mast width | 1800MM |
| Standard lifting height | 3000MM |
| Standard fork length | 1520MM |
| Curb weight | 4580KG |
| Drivetrain | Four-wheel drive(4WD) |
| Gross vehicle weight (GVW) | 6200KG |
| Front mast ground clearance | 300-380MM |
| Fork tilt | 6/12 |
| External dimensions | 4450*2000*2800 |
